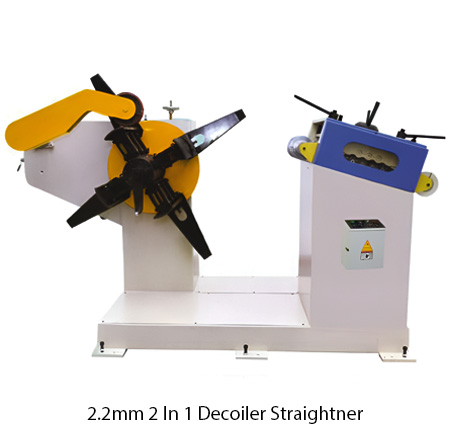

2.2mm 2 In 1 Decoiler Straightner | Power Press

Hydraulic Expansion: Optional part for enhanced coil handling and secure grip during operation
Press Arm Device: Optional part for improved material control and positioning
Motorized Decoiler: Optional part for automated coil unwinding and consistent material feed
Equipping with Inverter: Optional part for variable speed control and energy efficiency

Model	UL-150A	UL-200A	UL-300A	UL-400A	UL-500A	UL-600A	UL-700A
Material Width (mm)	150	200	300	400	500	600	700
Material Thickness (mm)	0.3-2.2	0.3-2.2	0.3-2.2	0.3-2.2	0.3-2.2	0.3-2.2	0.3-2.2
Material I.D. Φ	450-530	450-530	450-530	450-530	450-530	450-530	450-530
Material O.D. Φ	1200	1200	1200	1200	1200	1200	1200
Material Weight (kgs)	1000	1000	1000	1000	2000	2000	1000
Speed of Feed (m/min)	15	15	15	15	15	15	15
Coil Expansion	Manual/Hydraulic
Machine Weight (kgs)	800	900	1000	1100	1300	1500	1700
Machine AxBxC (m)	1.7x1.0x1.4	1.7x1.0x1.4	1.7x1.1x1.4	1.7x1.2x1.4	2.0x1.4x1.6	2.0x1.5x1.6	2.0x1.6x1.6

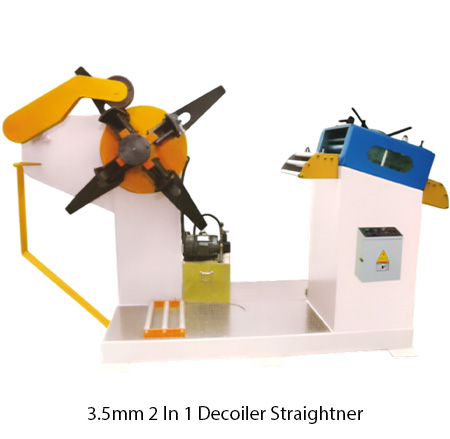

Model	UL-150B	UL-200B	UL-300B	UL-400B	UL-500B	UL-600B	UL-700B
Material Width (mm)	150	200	300	400	500	600	700
Material Thickness (mm)	0.4-3.5	0.4-3.5	0.4-3.5	0.4-3.5	0.4-3.5	0.4-3.5	0.4-3.5
Material I.D. Φ	450-530	450-530	450-530	450-530	450-530	450-530	450-530
Material O.D. Φ	1200	1200	1200	1200	1200	1200	1200
Material Weight (kgs)	1000	1000	1000	1000	2000	2000	1000
Speed of Feed (m/min)	15	15	15	15	15	15	15
Coil Expansion	Manual/Hydraulic
Machine Weight (kgs)	900	1000	1100	1200	1400	1600	1800
Machine Dimension AxBxC (m)	1.7x1.0x1.4	1.7x1.0x1.4	1.7x1.1x1.4	1.7x1.2x1.4	2.0x1.4x1.6	2.0x1.5x1.6	2.0x1.6x1.6
