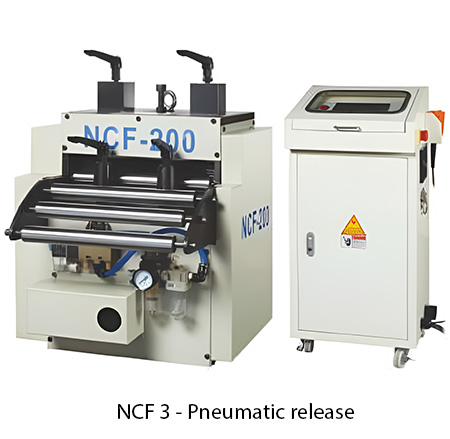

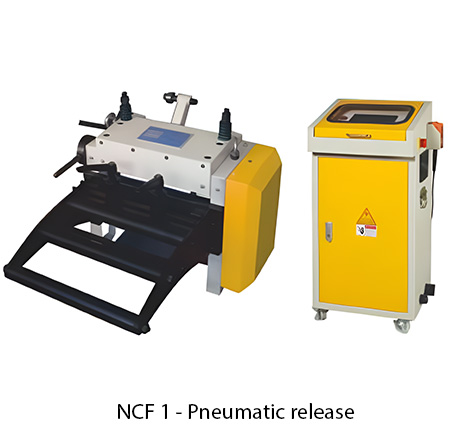

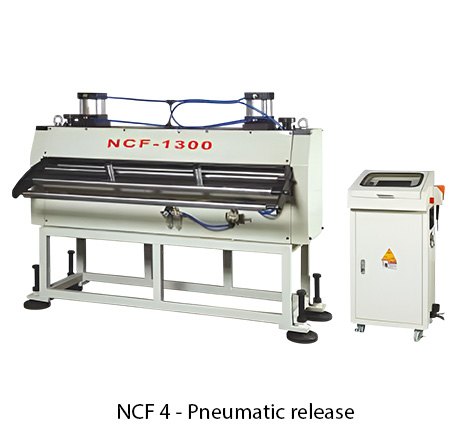

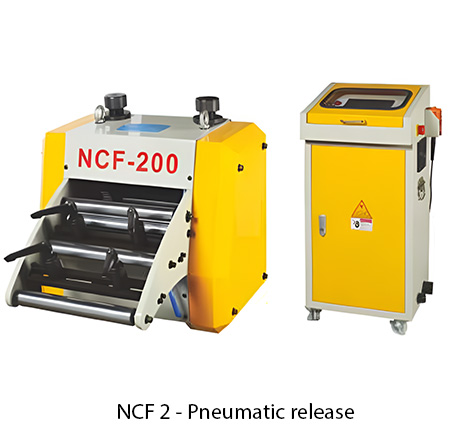

NC Servo Feeder

Specification	NCF-100 NCF-100A	NCF-200 NCF-200A	NCF-300 NCF-300A	NCF-400 NCF-400A	NCF-500 NCF-500A	NCF-600 NCF-600A	NCF-700 NCF-700A	NCF-800 NCF-800A	NCF-1000 NCF-1000A	NCF-1300 NCF-1300A	NCF-1600 NCF-1600A
Material Width (mm)	100	200	300	400	500	600	700	800	1000	1300	1600
Material Thickness (mm)	0.2-2.2	0.2-2.2	0.2-2.2	0.2-2.2	0.2-2.2	0.2-2.2	0.2-2.2	0.2-2.2	0.2-2.2	0.2-2.2	0.2-2.2
Standard Type	100	200	300	400	500	500	700	800	1000	1300	180
Material Thickness Width	90	180	280	300	350	400	420	480	500	650	700
Material Thickness Width	40	80	100	120	150	180	210	240	280	320	360
Material Thickness (mm)	0.3-4.5	0.3-4.5	0.3-4.5	0.3-4.5	0.3-4.5	0.3-4.5	0.3-4.5	0.3-4.5	0.3-4.5	0.3-4.5	0.3-4.5
Type A	100	200	300	400	500	600	700	800	1000	1300	1600
Material Thickness Width	80	160	240	320	400	460	520	560	600	600	650
Material Thickness Width	50	120	150	220	250	260	300	320	360	380	390
Feeding Length (mm)	9999.99	9999.99	9999.99	9999.99	9999.99	9999.99	9999.99	9999.99	9999.99	9999.99	9999.99
Feeding Speed (m/min)	20	20	20	20	20	20	20	20	20	20	20
Power Supply	220V Single phase / 380V/415V 3 Phase					380V/415V 3 Phase
Height of Feeding Line	70-250	70-250	70-250	70-250	70-250	70-250	90-250	90-250	90-250	90-250	90-250
*Machine Size LWH (mm)*	660x650x450	660x650x450	660x650x450	660x700x450	660x800x450	760x900x450	760x1040x1190	760x1040x1190	760x1240x1190	760x1340x1190	760x1440x1190
Release Type	Mechanical			Mechanical-Pneumatic			Pneumatic

High-precision feeding: Aiming at the coming of hi-tech industry, it controlled by computer closed-circuit feedback system, to ensure the accuracy can meet ±0.03mm.
Phased-feeding function: It can input 20 groups of different feeding length, each group provides punching for 999 times to satisfy the processing and production of special products (option).
Manual model: It can input 3 phases manual speed, which can let used operate more easily and feed materials with higher precision.
High-efficiency release device: It can set up release angle quickly, only need to match the cam signal on punching machine and to adjust the material thickness simply.
Feeding length setting: Input the feeding length on the control panel directly.
Feeding unit: The roller adopts middle-hollow type, being light and with low inertia for electroplate. The surface hardness is HRC 60° and finished chrome plated, can enhance the abrasive resistance and long lifetime.
