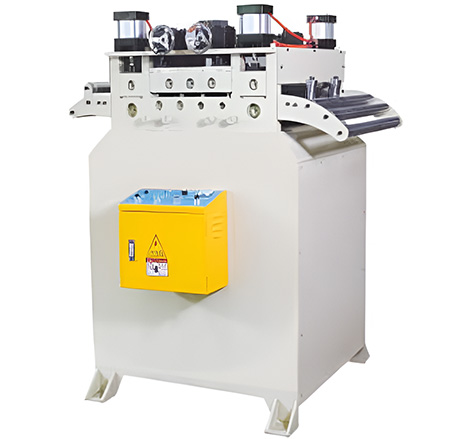

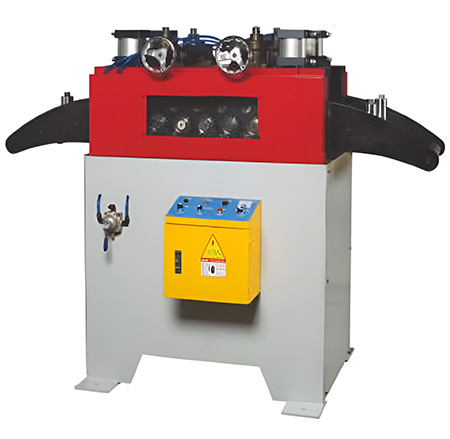

Our precision roller straighteners are designed to efficiently flatten and straighten metal coils, sheets, and strips with exceptional accuracy. Ideal for automotive, appliance, electronics, and metal fabrication industries, these machines remove coil set, waves, and distortions to deliver perfectly flat material for downstream processes like stamping, cutting, and forming.
| Model | SHL-200 | SHL-300 | SHL-400 | SHL-500 | SHL-600 |
|---|---|---|---|---|---|
| Max Width (mm) | 200 | 300 | 400 | 500 | 600 |
| Max Thickness (mm) | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 | 0.5-4.5 |
| Reducer Ratio | 1/30 | 1/30 | 1/30 | 1/30 | 1/30 |
| Feeding Roller | Φ80x4 | Φ80x4 | Φ80x4 | Φ80x4 | Φ80x4 |
| Straightening Roller | Φ72x7 | Φ72x7 | Φ72x7 | Φ72x7 | Φ72x7 |
| Model | GLL-200A | GLL-300A | GLL-400A | GLL-500A | GLL-600A | GLL-800A |
|---|---|---|---|---|---|---|
| Max Width (mm) | 200 | 300 | 400 | 500 | 600 | 800 |
| Max Thickness (mm) | 1.0-6.0 | 1.0-6.0 | 1.0-6.0 | 1.0-6.0 | 1.0-6.0 | 1.0-6.0 |
| Straightening Speed (m/min) | 15 | 15 | 15 | 15 | 15 | 15 |
| Machine Size (L*W*H) (m) | 1.5x0.8x1.2 | 1.5x0.9x1.2 | 1.5x1.0x1.6 | 1.5x1.1x1.6 | 1.5x1.2x1.6 | 1.5x1.4x1.6 |
