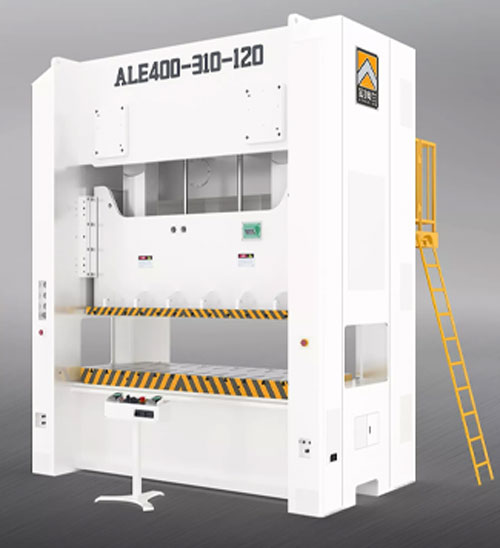

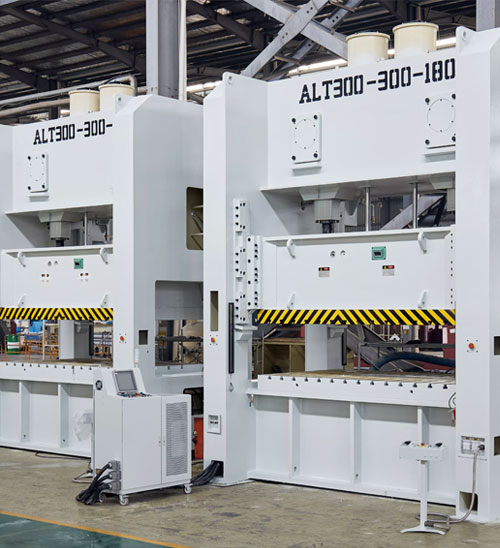

ALE Double Crank H Frame High Precision Power Press

ALE series h frame power press machine is one of the hot products of KINGLAN high-precision press machines. It adopts the structure of closed type double-crank, frame made by welded steel plate which processed through heat treatment and elimination of internal stress. The transmission center and the center of whole machine tend to be the same to ensure accurate and stable stamping.

The clutch/brake device of the high-precision steel frame press is highly sensitive, the slider adjusting mechanism is adjusted to high precision, and the production is to be safer and faster. The crankshaft, gear, gear shaft and other friction parts of closed double-crank precision press are hardened and heat-treated and then ground. It has high wear resistance and balance, stable performance, ensuring the quality and service life of CNC press machine. The high performance power press punching machine can be equipped with an automatic feeder and engaged in automatic transfer of the entire production line.

H Frame Power Press Features:

Easy operation, humanized design of control system.
Continuous and inching movement mode, satisfying different operational requirements.
Big size bolster and slider area with reasonable T slot deployment adapt to varieties of mould installation.
Imported PLC cooperated with imported cam switch provides powerful and any-time programmable function, reserving enough room for expansion.
Easy die height adjustment. Easy and quick electrical or manual adjustment device, reading accuracy is up to 0.1mm.
Digital die height indicator reflects die height at any time.
Electronic crankshaft angle display shows the travel location at any time, obvious to observe its position.
The configuration of frequency motor allows you to change the stroke speed at any time to adapt to different stamping process demand.
Centralized lubrication device ensures all moving parts lubricated timely, reducing machine wear and prolong its service life.
Instructional slider motion function can make all online presses connected smoothly.
Air blowing device automatically blows away work-piece wastage, protecting mould safety as well as improving production efficiency.
Miss feed detection function will remind abnormal situation and quickly stop the press to protect mould safety, reducing waste.
Electromagnetic stroke counter and preset counter make your production management more convenient.
When motor lack of power or with low rotational speed, slider will automatically stop moving
Lower mould pneumatic knock-out device and upper mould mechanical knock-out device make part ejection easily realized.
If clutch wear, automatic alarm occurs to stop the press
Extremely high affinity to surrounding automatic equipments enables unmanned operation, greatly enhanced work efficiency.

Power Press Punching Machine Specification

Technical Parameter
Item		ALE-200		ALE-250		ALE-300		ALE-400		ALE-500
Model		S Type	H Type	S Type	H Type	S Type	H Type	Small Bolster	Large Bolster	S Type
Item	Ton	200		250		300		400		500
Rated Tonnage Point	mm	6	3	7	3	7	3	7	7	7
Speed Per Minute	s.p.m	20-50	35-70	20-40	30-60	20-40	30-50	20-40	20-30	20-40
Stroke length	mm	250	150	280	170	300	170	300	300	300
Die Height	mm	500	450	550	450	550	450	550	550	600
Slide Adjustment	mm	120		120		120		120		150
Slide Area	mm	2090×750×95		2500×900×95		2500×900×95		2700×1000×95	3100×1000×95	2700×1300×95
Bolster Area	mm	2200×940×170		2500×1000×170		2500×1000×190		2700×1000×190	3100×1000×190	2700×1000×190
Main Motor	kw.p	15×4		18.5×4		30×4		30×4		45×4
Slide Adjust Device		Electric driving
Air Pressure	kg/cm²	5～6		5～6		5～6		5～6		5～6
Presses Precision		CNS（Jls）1class

H Frame Press Accessories Accessories

Accessories	Standard	Accessories	Optional
Hydraulic Over-load Protector	●	Electrical Automatic Lubrication System	○
Inverter	●	Pneumatic Die Cusion Device	○
Slide Adjust Device	●	Foot Switch	○
Die Heigh Indicator	●	Quick Die Change Device (Die Lifter,Clamp And Die Arm Shift Mode）	○
Balance Device	●		○
Rotary Cam Switch	●	Slide Knock-out Device	○
Crank Angle Indicator	●	Misfeed Detection Consent	○
Power Supply	●	Anti Vibration Press Mount	○
Electric Stroke Counter	●	Photo-electronic Safety Device	○
Air source Recepatacle	●	Feeder	○
Presrt Counter	●	Uncoiler	○
Presrt Counter	●	Leveler	○
Against Over-run Safety Device	●	Machanism Hand	○
Maintenance Tool Box	●	Die Room Light	○
Operation Manual	●
