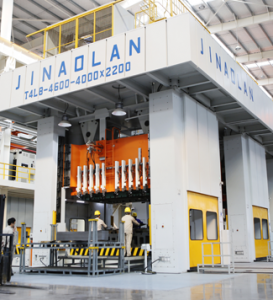

T4 Four Point Eccentric Gear Link Type Press

The T4 series press is a four-point mechanical eccentric press with 4 sets of guide post and guide bushes. Its working table can be made larger than T2 series. KINGLAN T4 series press machine adopts mature technology and structure, and the key parts are all world famous brands; the structure design is reasonable, the performance is stable and reliable; in working state, there is enough static and dynamic stiffness to ensure the system has good dynamic quality; The accuracy and response speed of the selected CNC drive system and actuators meet the design standards. It can meet the quality requirements of the process and product of the processed parts for a long time. Press has excellent sealing performance, no leakage, easy operation and maintenance, beautiful appearance and excellent after-sales service. Only after the whole machine is installed and commissioned to be qualified in our own plant, it will be disassembled and transported to the customer for installation.

Mechanical Eccentric Press Features:

The body the press is made of welded steel plate split structure or steel plate welded one-piece structure. The top seat in the split structure, the middle platform, and the base are pre-tightened by four reinforcing rods to form a high rigidity.
The press uses eccentric gears for stable transmission and low noise.
Guided by a four-corner eight-sided guide rail, the lateral force is small and the precision is high.
The working table of the press can be selected as fixed or forward and backward moving, left and right moving and "T" type moving, etc. The user can select according to the specific conditions such as equipment arrangement, single machine or production line. It is convenient and quick to change the mold using moving trolley.
The model of the press can be air-cushion fixed stroke or adjustable stroke to meet the technical requirements of various complex and tensile parts in structure.
The lubrication system of the press adopts an automatic circulation system, continuous fixed-point and quantitative oil supply methods, and has fault detection devices such as blockage, crack and insufficient oil.
The electrical control system of the press adopts a programmable (PLC) control system, various functions such as the electronic cam, the control angle monitoring and display, and the pressure tonnage monitoring and display are controlled by PLC.

Four Point Eccentric Gear Link Type Press Specification

Technical Parameter
Item		T4-630	T4-800	T4-1000	T4-1300	T4-1600
Capacity	Ton	630	800	1000	1300	1600
Rated Tonnage Point	mm	13	13	13	13	13
Stroke length	mm	500	500	600	600	600
Strokes Per Minute	s.p.m	10-20	10-20	10-20	10-20	10-20
Die Height	mm	1000	1000	1000	1000	1000
Slide Adjustment	mm	400	400	400	400	500
Slide Area（L.R * F.B）	mm	4000×2200	4000×2200	4000×2400	4000×2400	4000×2400
Bolster Area（L.R * F.B）	mm	4000×2200	4000×2200	4000×2400	4000×2400	4000×2400
Die cushion capacity	mm	120	150	150	200	300
Die cushion stroke	mm	200	250	250	250	250

Mechanical Eccentric Press Accessories

Accessories	Standard	Accessories	Optional
Hydraulic Over-load Protector	●	Electrical Automatic Lubrication System	○
Inverter	●	Pneumatic Die Cusion Device	○
Slide Adjust Device	●	Foot Switch	○
Die Heigh Indicator	●	Quick Die Change Device (Die Lifter,Clamp And Die Arm Shift Mode）	○
Balance Device	●		○
Rotary Cam Switch	●	Slide Knock-out Device	○
Crank Angle Indicator	●	Misfeed Detection Consent	○
Power Supply	●	Anti Vibration Press Mount	○
Electric Stroke Counter	●	Photo-electronic Safety Device	○
Air source Recepatacle	●	Feeder	○
Presrt Counter	●	Uncoiler	○
Presrt Counter	●	Leveler	○
Against Over-run Safety Device	●	Machanism Hand	○
Maintenance Tool Box	●	Die Room Light	○
Operation Manual	●
