T2L8 Two Point Eight Link Motion Type Press | Power Press

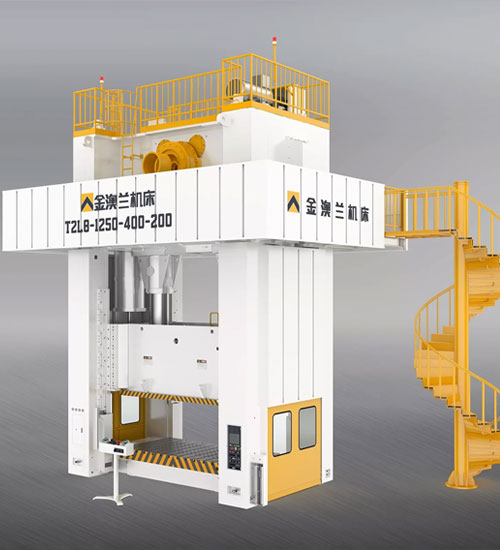

T2l8 Two Point Straight Side Eight Link Motion Type Power Press

The T2L8 Series power press is engineered for high rigidity, precision, and stable performance in demanding forming applications. Its welded steel frame—available in split or integral structure—is pre-tensioned to create a robust, unified body. An eccentric gear drive ensures smooth, low-noise transmission, while the long guide rail with four corners and eight sides minimizes lateral force for superior accuracy. The press offers flexible worktable options, including fixed or movable bolsters with multi-directional movement for quick and efficient die changes. Equipped with an air die cushion for fixed or adjustable stroke, an automatic circulation lubrication system with fault detection, and a PLC-based electrical control system with advanced monitoring features, the T2L8 delivers reliability, efficiency, and precise control for complex and deep-drawing operations.

Motion Type Power Press Features:

High-rigidity press frame made from welded steel plate, available in split or one-piece structure, pre-tensioned with reinforcing rods for superior strength and stability.
Eccentric gear drive system ensures smooth transmission, stable operation, and low noise.
Two-point straight side eight-link motion mechanism provides optimized slide motion, reduced impact, and improved forming quality.
Four-corner, eight-side long guide rails reduce lateral force and deliver high guiding precision.
Worktable options include fixed or movable types with front-back, left-right, or “T”-slot movement for fast and easy die changing.
Movable bolster design significantly reduces die change time and improves production efficiency.
Equipped with air cushion system offering fixed or adjustable stroke to suit complex forming and deep-drawing applications.
Automatic centralized lubrication system with timed and quantitative oil supply, including fault detection for blockages, leaks, and low oil levels.
PLC-based electrical control system with electronic cam, braking angle monitoring, pressure monitoring, and tonnage display for safe and precise operation.
High-precision brake and clutch system ensures quick response, reliable stopping, and enhanced operational safety.
Designed for integration into automated production lines with optional feeding, transfer, and safety guarding systems.
Ideal for high-precision stamping, forming, and deep-drawing applications in automotive, appliance, and heavy engineering industries.

Eccentric Press Specification

Model	Ton	T2L8-630MB	T2L8-800MB	T2L8-1000MB	T2L8-1250MB	T2L8-1600MB
Type	mm	630	800	1000	1250	1600
Stroke	S.P.M	700	700	800	800	900
Stroke Per Minute	mm	8-16	8-16	8-16	8-16	8-16
Tonnage Rated Point	mm	13	13	13	13	13
Die Height(D.H)	mm	1000	1000	1000	1200	1200
Slide Adjustment	mm	500	500	500	500	500
Slide Area	mm	3600*1800	3600*1800	4000*1800	4000*1800	4500*2000
Bolster Area	mm	3600*1800	3600*1800	4000*1800	4000*1800	4500*2000
Side Opening Size	mm	One Plate Two Cylinder
Main Motor	mm	90*4	110*4	132*4	160*4	200*4
Main Motor	kgf/cm2	15*6	15*6	15*6	18.5*6	22*6
Required Air Pressure		5~6
Press Accuracy	mm	CNS(JIS)1 class
Maximum upper mold weight	mm	10	12	15	15	20
Left and right column spacing	mm	650	650	650	650	650
Die Cushion(Optional)	Ton	One Plate Two Cylinder
Capacity	mm	100	120	120	150	200
Stroke Length	mm	0-250	0-250	0-250	0-250	0-250
Cushion Area	mm	By Design

Eccentric Power Press Accessories

Standard Accessories	Standard	Optional Accessories	Optional
Hydraulic overload protection device	●	Pneumatic Die Cusion Device	○
Inverter	●	Quick Die Change Device (Die Lifter, Clamp And Die Arm)	○
Electric Slide Adjust Device	●	Slide Knock-out Device	○
Manual Slide Adjust Device (ALP-60 and below)	●	Anti-vibration pad	○
Electric Die Height Indicator	●	Photoelectric safety device	○
Slide and die balancing device	●	Feeder	○
Rotary Cam Switch	●	Uncoiler	○
Crank Angle Indicator	●	Leveler	○
Air Source Connector	●	Transfer Arm	○
Precut Counter	●
Preset Counter	●
Overrun protection device	●
Tool Box	●
Operation Manual	●
Centralized Oil lubrication	●
Misfeeding Detection Socket	●
Die Room Light	●
