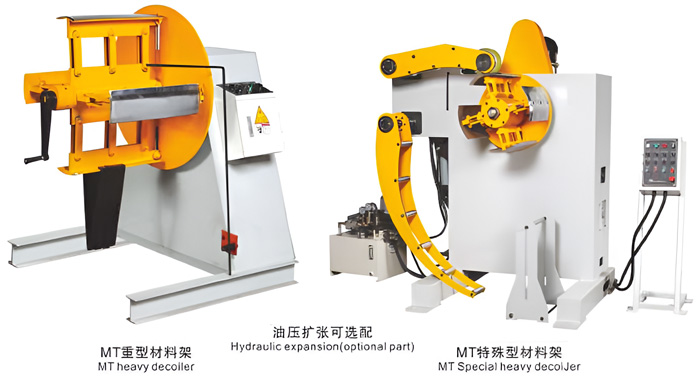

Decoiler
Machine Configuration
- Hydraulic expansion device (optional part)
- Press arm device (optional part)
- Material side guide device (optional part)
Key Features of Decoiler
- It's suitable for all kinds of coiling material receiving and feeding, no matter thin or thick, metal or nonmetal sheets.
- Adding motor to match with feeding device is available.
- Brake device is adjustable; the principal axis adopts powerful type.
- It makes the material roll more smoothly, and increase loading capability.
- It's a necessary device for auto punching machine working. It can save manpower, reduce cost and increase efficiency.
- It adopts Japan magnetic contactor and electronic components, less trouble and long lifetime.
Decoiler Specification
| Model |
MT-200 |
MT-300 |
MT-400 |
MT-500 |
MT-600 |
MT-700 |
MT-800 |
| Material Width (mm) |
200 |
300 |
400 |
500 |
600 |
700 |
800 |
| Material Thickness (mm) |
0.2-6.0 |
0.2-6.0 |
0.2-6.0 |
0.2-6.0 |
0.2-6.0 |
0.2-6.0 |
0.2-6.0 |
| Coil I.D. (mm) |
Φ450-530 |
Φ450-530 |
Φ450-530 |
Φ450-530 |
Φ450-530 |
Φ450-530 |
Φ450-530 |
| Coil O.D. (mm) |
Φ1200 |
Φ1200 |
Φ1200 |
Φ1200 |
Φ1200 |
Φ1200 |
Φ1200 |
| Material Weight (kg) |
500 |
1000 |
2000 |
2000 |
3000 |
3000 |
3000 |
| Feeding Speed (m/min) |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
| Coil Expansion |
Manual |
| AC Power (AC) |
AC 3 Phase 380V 60HZ |
