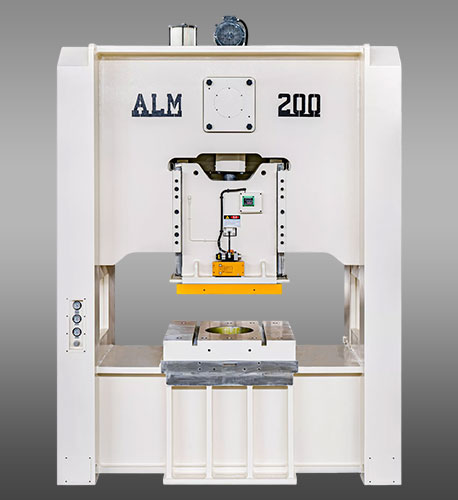

ALM Single Crank H Frame High Precision Power Press

The ALM Single Crank H-Frame High Precision Power Press is designed to deliver superior productivity, exceptional stamping accuracy, and enhanced operational flexibility for modern manufacturing environments. Engineered for low noise and low vibration, it ensures a smooth and stable working experience while supporting high-speed production needs. Its rigid frame structure offers minimal deformation and excellent resistance to left–right eccentric loading, significantly extending mold life and ensuring reliable long-term performance. The machine’s fixed long guide rails, high-rigidity H-frame design, and advanced multifunction microcomputer control system make operation simple, efficient, and highly precise. Ideal for progressive stamping lines and automatic production setups, the ALM Series combines durability, accuracy, and user-friendly functionality in a single high-performance solution.

High Speed Stamping Press features:

High Precision & Low Vibration Design: Engineered for accurate stamping with reduced noise and vibration, ensuring stable performance in high-speed production environments.
Superior Frame Rigidity: The robust H-frame structure minimizes deformation and maintains accuracy even under eccentric loading, greatly enhancing tool and mold life.
Enhanced Productivity & Flexibility: Supports diverse stamping applications with improved production flexibility, making it ideal for multi-variety and progressive operations.
Long Fixed Guide Rails: Equipped with extended, fixed lock guide rails that ensure smooth slider movement, stable alignment, and consistent precision during continuous operation.
Advanced Microcomputer Control System: Integrated multi-function control system enables precise parameter settings, easy operation, and seamless automation compatibility.
Improved Reliability & Safety: Designed with high-standard safety features, reduced blanking noise, and a durable structure to guarantee long-term stable performance.
Ideal for Automated Production Lines: Built to synchronize with automated feeding systems, making it suitable for stable, efficient, and continuous mass production setups.

High Precision Power Press Machine Specification

Technical Parameter
Model	Unit	ALM-160		ALM-200		ALM-250		ALM-300
Stroke Length	mm	200		200		200		200
Stroke Per Minute	S.P.M	20-50		20-50		20-50		20-50
Tonnage Rated Point	mm	6		6		7		7
Max. Die Height	mm	460		460		500		500
Slide Adjustment	mm	100		110		120		120
Slide Area	mm	1000*1000	1000*1000	1050*1000	1200*1000	1050*1000	1200*1000	1050*1000	1200*1000
Bolster Area	mm	1200*1200	1200*1200	1300*1300	1400*1300	1300*1300	1400*1300	1300*1300	1400*1300
Side Opening Size	mm	700*500		700*500		900*600		900*600
Dia Of Shank Hole	mm	65		65		65		65
Main Motor	KW*P	18.5*4		22*4		30*4		37*4
Max. Upper Die Weight	kg	600		700		1000		1200
Left And Right Column Spacing	mm	2400		2400		2700		2900
Required Air Pressure	kgf/cm²	5~6
Press Accuracy	---	CNS (JIS) 1 class — 一级

H Frame Power Press Accessories

Accessories	Standard	Accessories	Optional
Hydraulic overload protection device	●	Pneumatic Die Cusion Device	○
Inverter	●	Quick Die Change Device (Die Lifter, Clamp And Die Arm)	○
Electric Slide Adjust Device	●	Slide Knock-out Device	○
Electric Grease Lubrication System	●	Anti-vibration pad	○
Electric Die Height Indicator	●	Photoelectric safety device	○
Slide and die balancing device	●	Feeder	○
Rotary Cam Switch	●	Uncoiler	○
Crank Angle Indicator	●	Leveler	○
Air Source Connector	●	Transfer Arm	○
Precut Counter	●
Preset Counter	●
Overrun protection device	●
Tool Box	●
Operation Manual	●
Anti-vibration pad	●
Misfeeding Detection Socket	●
Die Room Light	●
