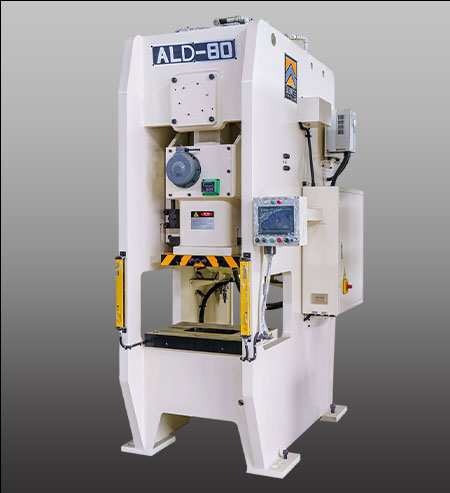

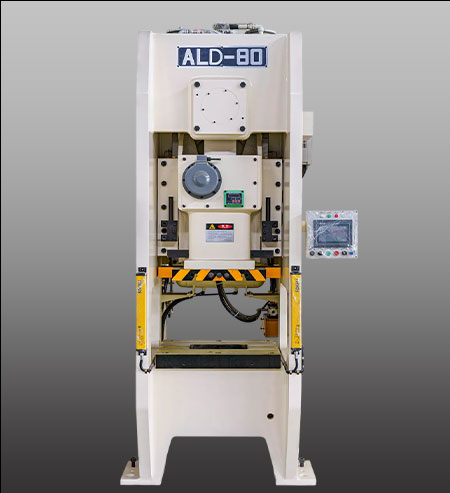

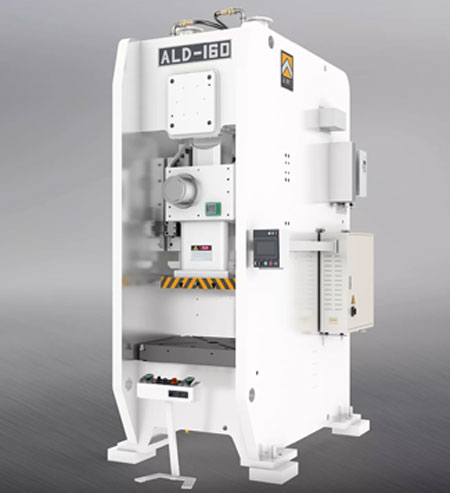

ALD Single Crank Semi-closed High Precision Power Press

The ALD series is a semi-closed crank stamp press machine independently developed by KINGLAN to meet customer needs. It has the characteristics of small change of mold height, small deviation of dynamic center, small amount of stamping deformation, and low noise of blanking cutting. The fixed-lock six-sided guide rail and high-rigidity body realize high-precision stamping of the product, and the life of the mold is also greatly improved.

Stamp Press Machine Features:

  • Built-in transmission construction, no gear or flywheel injury to personnel
  • Emergency button can instantly stop the machine at any time, well handling unexpected accidents.
  • Safety loop device of two-hand operation requires synchronous press within 0.2s to get operated, protecting the safety of personnel.
  • Overload automatic protection device can instantly detect exceeded pressure and make an emergency stop within 0.01s, avoiding press, mould and personnel injury.
  • Cam failure detection circuit can effectively avoid dangerous accidents caused by cam wear.
  • The use of photoelectric safety device can make the machine emergency stop if detecting foreign matter into dangerous zone, avoiding danger.
  • The interconnected control loop consisting of imported solenoid valve and cam device ensures correct movement of clutch, impossible occurrence of continuous stamping.
  • When brake pad wears causing long time braking and angle deflection, machine can automatically detect and give signal to avoid danger.
  • Electrical box’s power-off device (when open the door, power will be off) ensures the safety of electrical maintenance.
  • The safety net setting on the back of the machine guarantees the safety of personnel.

H Frame Press Specification

Technical Parameter
Item ALD-80 ALD-110 ALD-160 ALD-200
Model V  H V H V H V H
Capacity Ton 80 110 160 200
Rated Tonnage Point mm 4 2 6 3 6 3 6 3
Stroke mm 150 70 180 80 200 90 200 100
Die Height mm 340 380 360 410 460 510 460 510
Stroke per Minute  s.p.m 35～80 80～120 30～60 60～90 20～50 40～70 20～50 50～70
Slide Adjustment mm 80 80 100 110
Slide Area mm 560×420×70 650×470×80 700×550×90 850×630×90
Bolster Area mm 740×550×90 880×600×110 960×800×140 1120×820×160
Main Motor kw.p 5.5×4 7.5×4 11×4 15×4
Slide Adjust Device Electric Driving
Air Pressure kg/cm² 5～6 5～6 5～6 5～6
Presses Dimension mm 1300×1890×3000 1420×1985×3200 1600×2200×3500 1750×2500×3900
Presses Precision CNS（JIS）1class
Capacity Ton 3.6 6.3 10 14
Stroke mm 70 80 80 100
Die Cushion effectiv Area mm 450×310 500×350 650×420 710×480

Mechanical Single Crank Semi-closed Press Accessories

Accessories Standard Accessories Optional
Hydraulic Over-load      Protector    ● Electrical Automatic Lubrication System ○
Manual drive Lubrication System ● Pneumatic Die Cusion Device ○
Inverter ● Presrt Counter ○
Electrical Slide Adjust Device  ● Presrt Counter ○
Electrical Die HEIGH Indicator  ● Foot Switch ○
Balance Device ● Quick Die Change Device (Die Lifter,Clamp And Die Arm shift mode） ○
Rotary Cam Switch ● Slide Knock-out Device ○
Crank Angle Indicator ● Misfeed Detection Consent ○
Electric Stroke Counter ● Power Supply  ○
Air source Recepatacle ● Anti Vibration Press Mount ○
Against Over-run Safety Device ● Photo-electronic Safety Device ○
Maintenance Tool Box ● Feeder ○
Operation Manual ● Uncoiler ○
Leveler ○
Machanism Hand ○
Die Room Light ○
Left(rithgt)feeeding device ○
