ALP Single Crank C Frame High Precision Power Press ALP

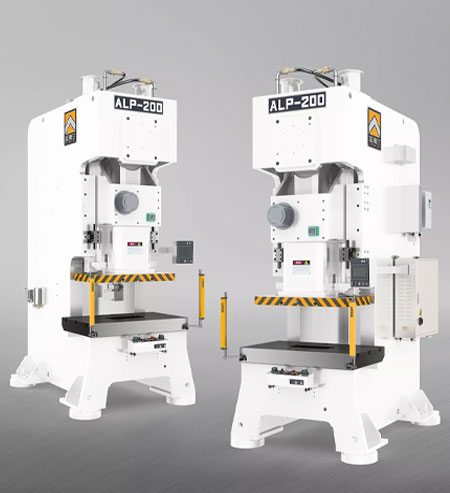

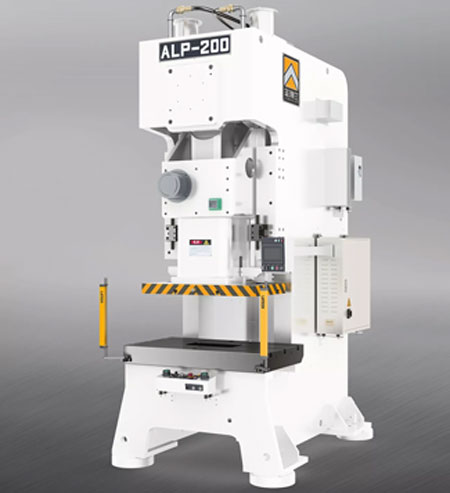

The ALP series of open-type fixed table presses are general-purpose presses for sheet metal stamping. They are suitable for various cold stamping processes such as shearing, punching, blanking, bending and shallow drawing. It is manufactured in strict accordance with Japanese JIS Class 1 accuracy standards and is superior to domestic standards.

The main components of our c frame punch press are all processed by imported CNC equipments. Japanese high-quality bearings and imported oil seal linings ensure the accuracy and longevity of the machine.

Small variation in die height, small dynamic center deviation: The service life of mold has significantly increased.
High speed sealing, high speed response: Small sealing gap, replaceable seal, small blanking impact gap, noise cutting during blanking.
Fixed lock hexagonal guide rail: High quality body, small comprehensive clearance gap.

C Frame Punch Press Specification

ALP Series High Precision Compact Power Press Technical Parsmeter
Item		ALP-25		ALP-35		ALP-45		ALP-60		ALP-80		ALP-110		ALP-160		ALP-200		ALP-260		ALP-260		ALP-315
Model		V	H	V	H	V	H	V	H	V	H	V	H	V	H	V	H	V	H	V	H	V	H
Capacity	Ton	25		35		45		60		80		110		160		200		260		200		200
Rated Tonnage Point	mm	3.2	1.6	3.2	1.6	3.2	1.6	4	2	4	2	6	3	6	3	6	3	7	3.5	7	3.5	7	3.5
Speed Changing	s.p.m	60～140	130～200	40～120	110～180	40～100	100～150	35～90	80～120	35～80	80～120	30～60	60～90	20～50	40～70	20～50	50～70	20～40	40～50	20～40	40～50	20～40	40～50
Stable Speed	s.p.m	110		85		75		65		65		50		35		35		30		30		30
Stroke	mm	60	30	70	40	80	50	120	60	150	70	180	80	200	90	200	100	250	150	250	150	250	150
Die Height	mm	200	215	220	235	250	265	310	340	340	380	360	410	460	510	460	510	500	550	500	550	500	550
Slide Adjustment	mm	50		55		60		75		80		80		100		110		120		120		120
Slide Area	mm	300×220×50		360×250×50		400×300×60		500×360×70		560×420×70		650×470×80		700×550×90		850×630×90		950×700×100		950×700×100		1400×800×100
Bolster Area	mm	680×300×70		800×400×70		850×440×80		900×500×80		1000×550×90		1150×600×110		1250×800×140		1400×820×160		1500×840×180		1500×840×180		1800×950×180
Shank Hole	mm	Φ38		Φ38		Φ38		Φ50		Φ50		Φ50		Φ65		Φ65		Φ65		Φ65		Φ65
Main Motor	kw.p	2.2×4		2.2×4		3.7×4		3.7×4		5.5×4		7.5×4		11×4		15×4		18.5×4		18.5×4		22×4
Slide Adjust Device		Manual opearation								Electric driving
Air Pressure	kg/cm²	5～6		5～6		5～6		5～6		5～6		5～6		5～6		5～6		5～6		5～6		5～6
Presses Precision		JIS GRADE 1		JIS GRADE 1		JIS GRADE 1		JIS GRADE 1		JIS GRADE 1		JIS GRADE 1		JIS GRADE 1		JIS GRADE 1		JIS GRADE 1		JIS GRADE 1		JIS GRADE 1
Presses Dimension	mm	1390×920×2125		1450×990×2300		1650×1040×2390		1670×1090×2750		1820×1328×2980		1970×1458×3133		2390×1560×3610		2690×1790×4058		2865×1945×4433		2865×1945×4433		2900×1950×4600
Die Cushion Capacity	Ton	—		2.3		2.3		3.6		3.6		6.3		10		14		14		14		14
Stroke	mm	—		50		50		70		70		80		80		100		100		100		100
Die Cushion effective area	mm²	—		300×230		300×230		350×300		450×310		500×350		650×420		710×480		810×480		810×480		810×480
Presses Weight	Ton	2.1		3		3.8		5.6		6.5		9.6		16		23		32		23		23

ALP Single Crank C Frame Press Accessories

Accessories	Standard	Accessories	Optional
Hydraulic Over-load Protector	●	Pneumatic Die Cusion Device	○
Electrical Automatic Lubrication System	●	Quick Die Change Device (Die Lifter,Clamp And Die Arm shift mode)	○
Inverter	●	Foot Switch	○
Slide Adjust Device	●	Slide Knock-out Device	○
Preset Counter	●	Anti Vibration Press Mount	○
Die Height Indicator (ALP below 60)	●	Photo-electronic Safety Device	○
Rotary Cam Switch	●	Feeder	○
Crank Angle Indicator	●	Uncoiler	○
Electric Stroke Counter	●	Leveler	○
Air source Recepatacle	●	Machanism Hand	○
Against Over-run Safety Device	●
Maintenance Tool Box	●
Operation Manual	●
Die Room Light	●
