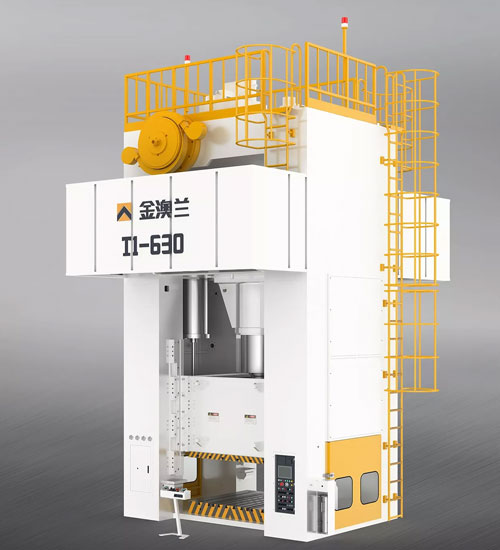

The T1 Series Single Point Straight Side Power Press is engineered for high accuracy, durability, and stable operation. Built with a high-rigidity welded steel frame, it ensures excellent resistance to deformation even under heavy loads. The eccentric gear drive delivers smooth, low-noise transmission, making it ideal for precision stamping and forming applications.
Designed for flexibility, the press supports fixed or movable worktables with multiple movement options for quick and easy die changes. Advanced features such as long guide rails, adjustable die cushion, automatic lubrication, and a PLC-based electrical control system ensure consistent performance, safety, and process reliability across complex and deep-drawing operations.
| Technical Parameter (T1 Series) | ||||||
|---|---|---|---|---|---|---|
| Model | Unit | T1-250MB | T1-315MB | T1-400MB | T1-630MB | T1-800MB |
| Type | Ton | 250 | 315 | 400 | 630 | 800 |
| Stroke | mm | 500 | 500 | 600 | 600 | 600 |
| Stroke Per Minute | S.P.M | 10~20 | 10~20 | 10~20 | 10~20 | 10~20 |
| Tonnage Rated Point | mm | 10 | 10 | 13 | 13 | 16 |
| Max. Die Height | mm | 750 | 750 | 800 | 1000 | 1000 |
| Slide Adjustment | mm | 300 | 300 | 400 | 500 | 500 |
| Slide Area (L*R * F*B) | mm | 1250*1000 | 1300*1200 | 1350*1200 | 1680*1400 | 1860*1500 |
| Bolster Area (L*R * F*B) | mm | 1250*1000 | 1300*1200 | 1350*1200 | 1700*1500 | 1900*1600 |
| Slide Opening | mm | By Design | ||||
| Main Motor | KW*P | 30*4 | 37*4 | 45*4 | 75*4 | 90*4 |
| Slide Adjust Structure | — | Electric driving | ||||
| Required Air Pressure | kgf/cm² | 5~6 | ||||
| Press Accuracy | — | CNS(JIS)1 class | ||||
| Die Cushion (Optional) | — | One Plate One Cylinder | ||||
| Cushion Capacity | Ton | 16 | 20 | 30 | 40 | 50 |
| Cushion Stroke Length | mm | 90 | 110 | 135 | 250 | 250 |
| Cushion Area | mm | By Design | ||||
| Standard Accessories | Std. | Optional Accessories | Opt. |
|---|---|---|---|
| Hydraulic Overload Protection Device | ● | Pneumatic Die Cushion Device | ○ |
| Inverter | ● | Quick Die Change Device (Lifter, Clamp, Arm) | ○ |
| Electric Slide Adjust Device | ● | Slide Knock-out Device | ○ |
| Manual Slide Adjust Device (ALP-60 and below) | ● | Anti-vibration pad | ○ |
| Electric Die Height Indicator | ● | Photoelectric safety device | ○ |
| Slide and Die Balancing Device | ● | Photoelectric Safety Device | ○ |
| Rotary Cam Switch | ● | Feeder / Uncoiler / Leveler | ○ |
| Crank Angle Indicator | ● | Transfer Arm / Mechanism Hand | ○ |
| Electric Stroke / Preset Counter | ● | Foot Switch | ○ |
| Air Source Receptacle / Connector | ● | Electrical Automatic Lubrication System | ○ |
| Centralized Oil Lubrication | ● | Misfeed Detection Consent / Socket | ○ |
| Overrun Protection Device | ● | ||
| Maintenance Tool Box & Manual | ● | ||
| Die Room Light | ● |
