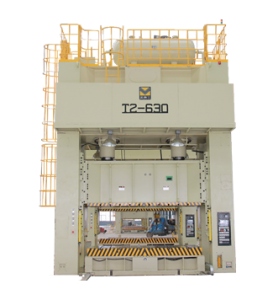

T2 Two Point Eccentric Gear Driving Press

The T2 series eccentric power press is a two-point eccentric type press. The eccentric gear is one of the key parts of the mechanical press. In the main drive system of the upper beam of the press, the eccentric gear and the connecting rod, the guide post and the slider constitute a crank slider mechanism. The rotary motion of the eccentric wheel is converted into a linear reciprocating motion of the slider by the crank slider mechanism, thereby realizing the stamping function of the mechanical press.

The manufacturing precision of the eccentric gear directly affects the movement precision of the mechanical press slider, which in turn affects the overall work of the mechanical press.

Eccentric Power Press Features:

The body the press is made of welded steel plate split structure or steel plate welded one-piece structure. The top seat in the split structure, the middle platform, and the base are pre-tightened by four reinforcing rods to form a high rigidity.
The press uses eccentric gears for stable transmission and low noise.
Guided by a four-corner eight-sided guide rail, the lateral force is small and the precision is high.
The working table of the press can be selected as fixed or forward and backward moving, left and right moving and "T" type moving, etc. The user can select according to the specific conditions such as equipment arrangement, single machine or production line. It is convenient and quick to change the mold using moving trolley.
The model of the press can be air-cushion fixed stroke or adjustable stroke to meet the technical requirements of various complex and tensile parts in structure.
The lubrication system of the press adopts an automatic circulation system, continuous fixed-point and quantitative oil supply methods, and has fault detection devices such as blockage, crack and insufficient oil.
The electrical control system of the press adopts a programmable (PLC) control system, various functions such as the electronic cam, the control angle monitoring and display, and the pressure tonnage monitoring and display are controlled by PLC.

Eccentric Press Specification

Technical Parameter
Item		T2-250	T2-400	T2-500	T2-630	T2-800	T2-1000	T2-1250	T2-1600
Capacity	Ton	250	400	500	630	800	1000	1250	1600
Rated Tonnage Point	mm	10	13	13	13	13	13	13	13
Stroke length	mm	400	500	600	600	600	650	700	700
Strokes Per Minute	s.p.m	10-20	10-20	10-20	10-20	10-20	8-18	8-18	8-18
Die Height	mm	600	900	1000	1000	1000	1100	1100	1200
Slide Adjustment	mm	300	400	400	500	500	500	500	550
Slide Area（L.R * F.B）	mm	2800x1500	3200x1500	3500×1500	3600×1600	3600×1600	4000x1800	4000x1800	4500x1800
Bolster Area（L.R * F.B）	mm	2800x1500	3200x1500	3500×1500	3600×1600	3600×1600	4000x1800	4000x1800	4500x1800
Die cushion capacity	mm	28	80	100	120	130	150	200	230
Die cushion stroke	mm	200	200	200	200	250	250	250	250

Eccentric Power Press Accessories

Accessories	Standard	Accessories	Optional
Hydraulic Over-load Protector	●	Electrical Automatic Lubrication System	○
Inverter	●	Pneumatic Die Cusion Device	○
Slide Adjust Device	●	Foot Switch	○
Die Heigh Indicator	●	Quick Die Change Device (Die Lifter,Clamp And Die Arm Shift Mode）	○
Balance Device	●		○
Rotary Cam Switch	●	Slide Knock-out Device	○
Crank Angle Indicator	●	Misfeed Detection Consent	○
Power Supply	●	Anti Vibration Press Mount	○
Electric Stroke Counter	●	Photo-electronic Safety Device	○
Air source Recepatacle	●	Feeder	○
Presrt Counter	●	Uncoiler	○
Presrt Counter	●	Leveler	○
Against Over-run Safety Device	●	Machanism Hand	○
Maintenance Tool Box	●	Die Room Light	○
Operation Manual	●
