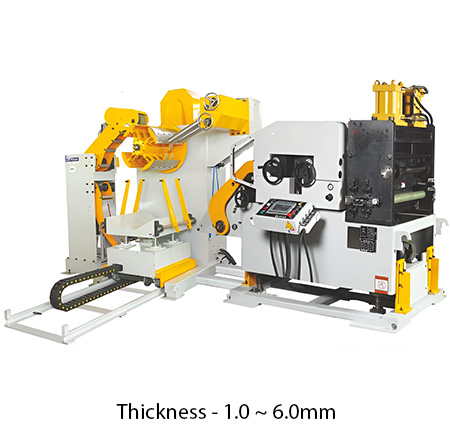

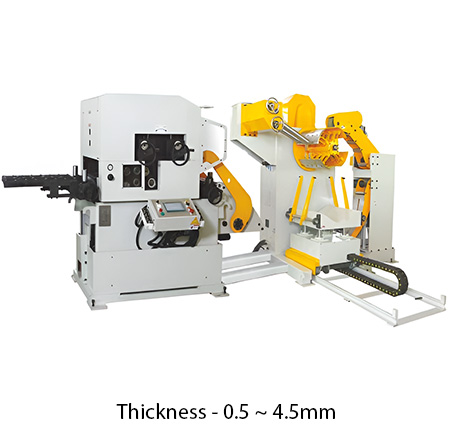

3-in-1 Decoiler, Straightener and Feeder
3-in-1 Decoiler, Straightener and Feeder Features
- Adopted specially treated straightening rollers, especially suitable high stretching steel, enhancing the processing precision.
- Electric straightening precision adjustment: It's easier to adjust by electric than by manual type.
- Electric & electronic parts adopted EUROPEAN STANDARD products: Better in safety, stability, lifetime and so on.
3-in-1 Decoiler, Straightener and Feeder Specification
| Model |
NCHW2-600A |
NCHW2-800A |
NCHW2-1000A |
NCHW2-1300A |
| Width of Material (mm) |
70-600 |
70-800 |
70-1000 |
70-1300 |
| Thickness of Material (mm) |
0.5-4.5 |
| Max Coil Weight (kg) |
5000 |
5000 |
7000 |
7000 |
| Coil I.D. (mm) |
508 |
| Coil O.D. (mm) |
1400 |
| Max Line Speed (m/min) |
22 |
| Feed Accuracy (mm) |
±0.15 |
| Work Roll |
Upper 5/F Lower 4 |
| Number of Feed Rolls |
1 |
| Back pressure Roll |
Provided |
| Feed level (mm) |
1200 (Customer Specified) ±100 |
| Power Supply |
220VAC 60HZ/AC380V 50HZ |
| Air Supply (kg/cm²) |
5kg/cm² |
| Uncoil Expansion |
Hydraulic |
3-in-1 Decoiler, Straightener and Feeder Specification
| Model |
NCHW2-600A |
NCHW2-800A |
NCHW2-1000A |
NCHW2-1300A |
| Width of Material (mm) |
70-600 |
70-800 |
70-1000 |
70-1300 |
| Thickness of Material (mm) |
0.5-4.5 |
| Max Coil Weight (kg) |
5000 |
5000 |
7000 |
7000 |
| Coil I.D. (mm) |
508 |
| Coil O.D. (mm) |
1400 |
| Max Line Speed (m/min) |
22 |
| Feed Accuracy (mm) |
±0.15 |
| Work Roll |
Upper 5/F Lower 4 |
| Number of Feed Rolls |
1 |
| Back pressure Roll |
Provided |
| Feed level (mm) |
1200 (Customer Specified) ±100 |
| Power Supply |
220VAC 60HZ/AC380V 50HZ |
| Air Supply (kg/cm²) |
5kg/cm² |
| Uncoil Expansion |
Hydraulic |
Material Thickness Specifications
| Material Thickness |
NCHW2-600A |
NCHW2-800A |
NCHW2-1000A |
NCHW2-1300A |
| 0.6 |
600 |
600 |
600 |
600 |
| 1.0 |
600 |
600 |
600 |
600 |
| 1.3 |
600 |
600 |
600 |
600 |
| 1.6 |
600 |
600 |
600 |
600 |
| 2.0 |
600 |
600 |
600 |
600 |
| 2.3 |
490 |
490 |
490 |
490 |
| 2.8 |
312 |
312 |
312 |
312 |
| 3.2 |
219 |
219 |
219 |
219 |
| 4.0 |
155 |
155 |
155 |
155 |
| 4.5 |
127 |
127 |
127 |
127 |
| 5.0 |
95 |
95 |
95 |
95 |
| 6.0 |
95 |
95 |
95 |
95 |
