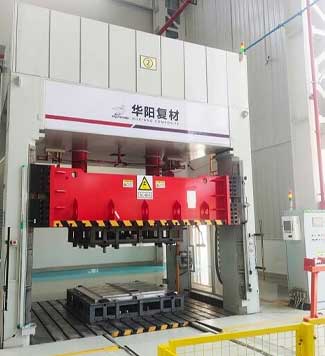

With the latest Closed-loop ratio control technology. digital control the speed, pressure, position, and pressing process with very high accuracy. The presses are will suitable for high quality production of various thermo setting and thermo-plastic SMC/BMC/DMC/LFT-D products. Widely used on aviation, aerospace, track vehicle, vessel, automobile, architecture, petrifaction, energy, electric and literary form producing.
| Type | Unit | y71-63 | y71-100 | y71-200 | y71-315 | y71-200 | y71-400 | y71-500 | y71-630 | y71-800 | y71-1000 | y71-1200 | y71-1600 | y71-2000 | y71-2500 | y71-3000 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Pressure | KN | 630 | 1000 | 2000 | 3150 | 4000 | 5000 | 6300 | 8000 | 10000 | 12500 | 16000 | 20000 | 25000 | 30000 | 32050 |
| preload Pressure | KN | 250 | 315 | 630 | 1000 | 1250 | 2000 | 2500 | 2500 | 3150 | 3150 | 5000 | 6300 | 8000 | 8000 | 10000 |
| Mould Opening Force | KN | 125 | 250 | 400 | 630 | 800 | 1000 | 1250 | 1250 | 1600 | 1600 | 2500 | 3150 | 3400 | 4000 | 5000 |
| Ejection Force | KN | 125 | 250 | 400 | 630 | 800 | 1000 | 1250 | 1250 | 1600 | 1600 | 2500 | 3150 | 2000 | 2000 | 2000 |
| Size Of Working Table | mm | 570 | 720 | 930 | 1260 | 1300 | 1400 | 1600 | 2000 | 2000 | 2200 | 2500 | 3000 | 3000 | 3200 | 3600 |
| Size Of Working Table | mm | 500 | 630 | 900 | 1200 | 1300 | 1400 | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 | 2000 | 2500 | |
| T Groove | mm | 22 | 22 | 28 | 28 | 36 | 36 | 36 | 36 | 36 | 36 | 36 | 42 | 42 | 42 | |
| Slider Stroke | mm | 500 | 630 | 710 | 800 | 800 | 900 | 1100 | 1200 | 1200 | 1400 | 1400 | 1500 | 1500 | 1500 | 1500 |
| Knockout Stroke | mm | 200 | 200 | 200 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 |
| The Max. Pressure Of System | mpa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Quick Descend Speed | mm/s | 120 | 120 | 120 | 150 | 180 | 180 | 200 | 200 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| Preload Speed | mm/s | 5-25 | 5-25 | 5-20 | 5-20 | 5-25 | 5-25 | 5-25 | 5-25 | 5-25 | 5-25 | 5-25 | 5-25 | 5-25 | 5-25 | 5-25 |
| Mould Opening Speed | mm/s | 2-10 | 10-20 | 2-7 | 2-7 | 2-7 | 2-7 | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 |
| Slider Return | mm/s | 100 | 100 | 100 | 120 | 140 | 170 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 |
| Slow Knockout | mm/s | 5-30 | 5-30 | 5-30 | 5-30 | 5-30 | 5-30 | 5-30 | 5-30 | 5-30 | 5-30 | 5-30 | 2-30 | 2-30 | 2-30 | 2-30 |
| Quick Ejecting | mm/s | 80 | 80 | 80 | 80 | 80 | 60 | 60 | 60 | 60 | 80 | 80 | 80 | 80 | 100 | 100 |
