Advanced Servo Power Press Series - High Precision Manufacturing Solutions

Our comprehensive range of Servo Power Press machines represents the pinnacle of modern stamping technology, offering unmatched precision, energy efficiency, and operational flexibility. Available in three distinct configurations:

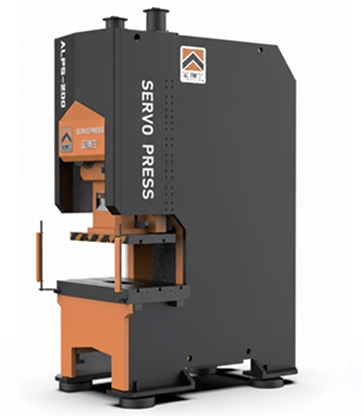

Open Single Point (ALPS Series): Ranging from 25 to 400 tons, these C-frame servo presses deliver exceptional accessibility and versatility for a wide range of stamping applications. Ideal for progressive die operations, punching, and forming tasks.

Open Double Point (ALCS Series): Featuring capacities from 110 to 315 tons, these dual-drive servo presses provide superior stability and parallelism for large bed applications. Perfect for automotive parts, appliance components, and heavy-duty metal forming operations.

Closed Double Point (ALES Series): Our premium H-frame servo presses, available from 160 to 500 tons, offer maximum rigidity and precision for the most demanding production environments. Engineered for deep drawing, precision blanking, and high-volume automotive applications.

All models feature advanced servo motor technology for programmable stroke curves, intelligent monitoring systems, continuous oil lubrication, and exceptional energy savings compared to conventional mechanical presses. Built to JIS Class 1 precision standards with premium Japanese and Taiwan electrical components.

Key Features of Servo Press

  • High energy utilization rate and saving as no Clutch & Flywheel and use of servo motor.
  • Fast response speed due to the absence of Clutch & Flywheel.
  • Improved stamping Quality & mold life due to controllable slide movement, slide can approach the material at a lower speed greatly reducing the impact on the mold extending the mold life, reducing equipment vibration and reducing noise levels improving the stamping environment and quality.
  • High degree of intelligence in monitoring of the current & voltage preventing abnormal overload of machine.
  • Continuous Oil Lubrication eliminating Grease lubrication & high grease consumption cost.
  • High Stamping flexibility as the slide stroke curve can be adjusted at any time according to your needs as shown in the chart.
Open Single Point Servo Press Specifications
Model Unit ALPS-25 ALPS-35 ALPS-45 ALPS-60 ALPS-80 ALPS-110 ALPS-125 ALPS-160 ALPS-200 ALPS-260 ALPS-315 ALPS-400
Pressurization capacity ton 25 35 45 60 80 110 125 160 200 260 315 400
Nominal force distance mm 3.2 3.2 3.2 4 4 6 6 6 6 7 7 7
Strokes per minute SPM 0~140 0~120 0~100 0~90 0~65 0~60 0~60 0~55 0~45 0~40 0~40 0~40
Stroke length mm 60 70 80 120 150 180 180 200 200 250 250 250
Die height (S.D.A.U) mm 200 220 250 310 340 360 360 460 460 500 550 550
Slide Adjustment mm 50 55 60 75 80 80 80 100 110 120 120 120
Slide Area (LR×FB) mm×mm 470×220 520×250 560×300 700×360 770×420 910×470 910×470 990×550 1130×630 1130×700 1200×800 1200×800
Bolster Area (LR×FB) mm×mm 680×300 800×400 850×440 900×500 1000×550 1150×600 1150×600 1250×800 1400×820 1500×840 1700×950 1800×950
Thickness of lower workbench mm 70 70 80 80 90 110 110 140 160 180 180 180
Shank hole mm φ 38 φ 38 φ 38 φ 50 φ 50 φ 50 φ 50 φ 65 φ 65 φ 65 φ 70 φ 70
Cooling mode of servo motor / Air Cooling Air Cooling Air Cooling Air Cooling Air Cooling Water Cooling Water Cooling Water Cooling Water Cooling Water Cooling Water Cooling Water Cooling
Peak torque of servo motor N.M 1060 1265 1485 2385 4000 6000 6000 9500 10500 12000 15000 22000
Equipment accuracy requirements / (JIS) class / Grade 1

Open Double Point Servo Press

Model Unit ALCS-110 ALCS-160 ALCS-200 ALCS-250 ALCS-315
Pressurization capacity ton 110 160 200 250 315
Nominal force distance mm 5 6 6 7 7
Strokes per minute SPM 0~65 0~55 0~45 0~35 0~35
Stroke length mm 180 200 250 280 280
Die height (S.D.A.U) mm 400 450 500 550 550
Slide Adjustment mm 100 100 120 120 120
Slide Area (LR×FB) mm×mm 1400×500 1600×550 1850×650 2100×700 2300×750
Bolster Area (LR×FB) mm×mm 1800×650 2000×760 2400×840 2700×900 2800×950
Cooling mode of servo motor / Water Cooling Water Cooling Water Cooling Water Cooling Water Cooling
Peak torque of servo motor N.M 9000 9500 12000 18000 22000
Equipment accuracy requirements / (JIS) class / Grade 1

Closed Double Point Servo Press

Model Unit ALES-160 ALES-200 ALES-250 ALES-300 ALES-400 ALES-500
Pressurization capacity ton 160 200 250 300 400 500
Nominal force distance mm 6 6 7 7 7 7
Strokes per minute SPM 0~55 0~50 0~40 0~40 0~40 0~40
Stroke length mm 200 250 280 300 350 350
Die height (S.D.A.U) mm 500 500 550 550 650 650
Slide Adjustment mm 100 120 120 120 120 120
Slide Area (LR×FB) mm×mm 1600×650 2090×750 2500×900 2500×900 3100×1100 3200×1300
Bolster Area (LR×FB) mm×mm 1800×760 2200×940 2500×1000 2500×1000 3100×1200 3200×1400
Cooling mode of servo motor / Water Cooling Water Cooling Water Cooling Water Cooling Water Cooling Water Cooling
Peak torque of servo motor N.M 9500 12000 18000 22000 12000×2 18000×2
Equipment accuracy requirements / (JIS) class / Grade 1
Accessories Standard Accessories Optional
Hydraulic overload protection device ● Electric Grease Lubrication System ○
Manual Grease Lubrication System ● Pneumatic Die Cushion Device ○
Inverter ● Quick Die Change Device (Die Lifter, Clamp And Die Arm) ○
Manual Slide Adjust Device (ALP-60 and below) ● Slide Knock-out Device ○
Electric Slide Adjust Device (ALP-80 and above) ● Anti-vibration Pad ○
Mechanical Die Height Indicator (ALP-60 and below) ● Photoelectric Safety Device ○
Electric Die Height Indicator (ALP-80 and above) ● Feeder ○
Slide and die balancing device ● Uncoiler ○
Rotary Cam Switch ● Leveler ○
Air Source Connector ● Transfer Arm ○
Overrun Protection Device ● Front Feeding Shaft End (ALP-80 and above) ○
Tool Box ● Left (Right) Feeding Shaft End ○
Pneumatic Counter ●
Preset Counter ●
Misfeeding Detection Socket ●
Power Supply ●
Front Feeding Shaft End (ALP-60 and below) ●
Die Room Light ●
