Optional accessories: servo numerical control type, movable worktable: light curtain safety protection device; mold heating intelligent temperature control device or water cooling, air cooling, industrial forced refrigerator and other cooling devices: touch industrial display: displacement transmission Sensing device: floating guide rail and rolling bracket for mold change; guide rail lubrication device: mold lighting: rapid die change system; safety relay, safety latch; safety carpet, etc.

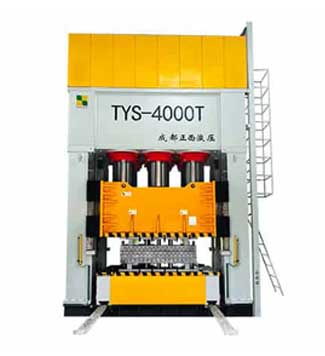

Applicable fields: This series of hydraulic press adopts a new generation of closed-loop proportional control technology, which is a special proprietary design for the automotive interior parts industry, especially suitable for hot press forming and trimming of automotive interior parts.
| Type | Unit | HY34-100 | HY34-200 | HY34-315 |
|---|---|---|---|---|
| Nominal Pressure | KN | 1000 | 2000 | 3150 |
| Knock-Out-Force | KN | 400 | 440 | 550 |
| Size Of Working Table | mm | 2960 | 3200 | 3200 |
| mm | 1800 | 2200 | 2200 | |
| T Groove | mm | 28 | 28 | 28 |
| Opening height | mm | 2160 | 1250 | 1250 |
| Slider Stroke | mm | 1560 | 810 | 810 |
| The Max. Pressure Of System | mpa | 25 | 25 | 25 |
| Quick Descend Speed | mm | >= 300 | >= 300 | >= 300 |
| Pressing Speed | mm | 15-30 | 15-30 | 15-30 |
| Pressing Speed | mm/s | >=200 | >=200 | >=200 |
